Dragonfly
  • Totally new profile & planform
  • Easier launch, improved handling
  • Excellent flare performance for easy landings
  • Improved brake range

PRODUCT INFO

Maximum Stability & Fun

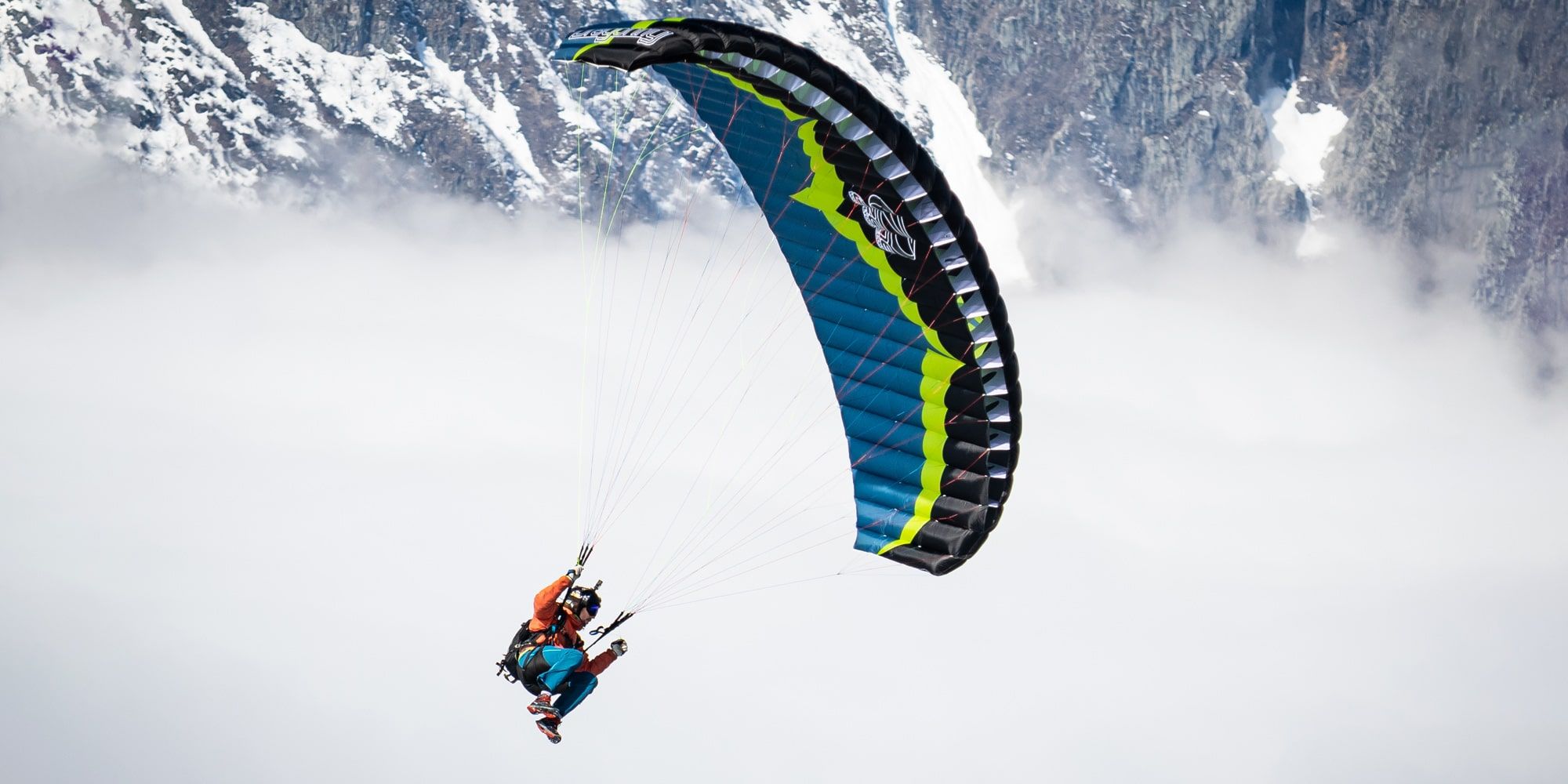

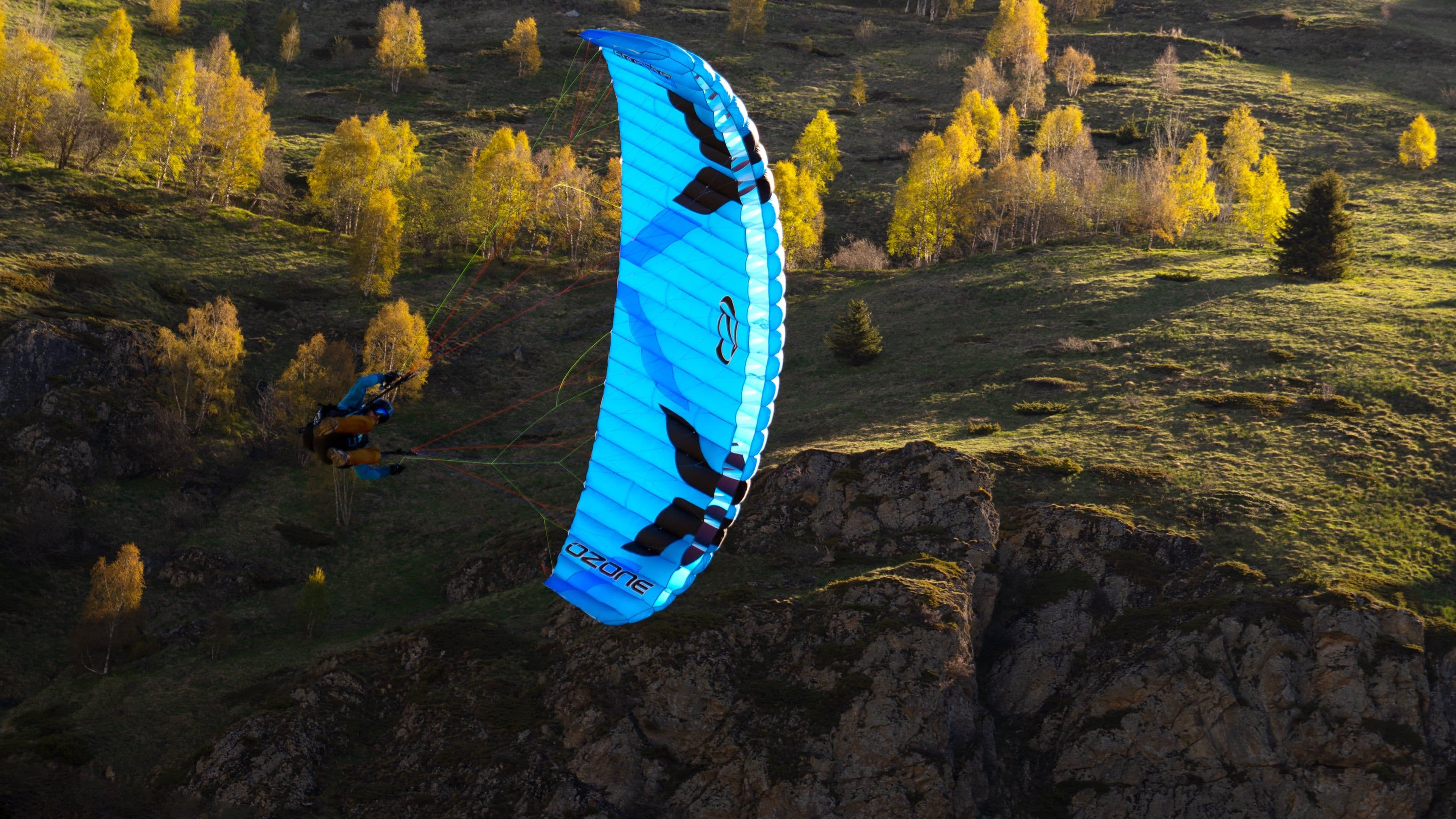

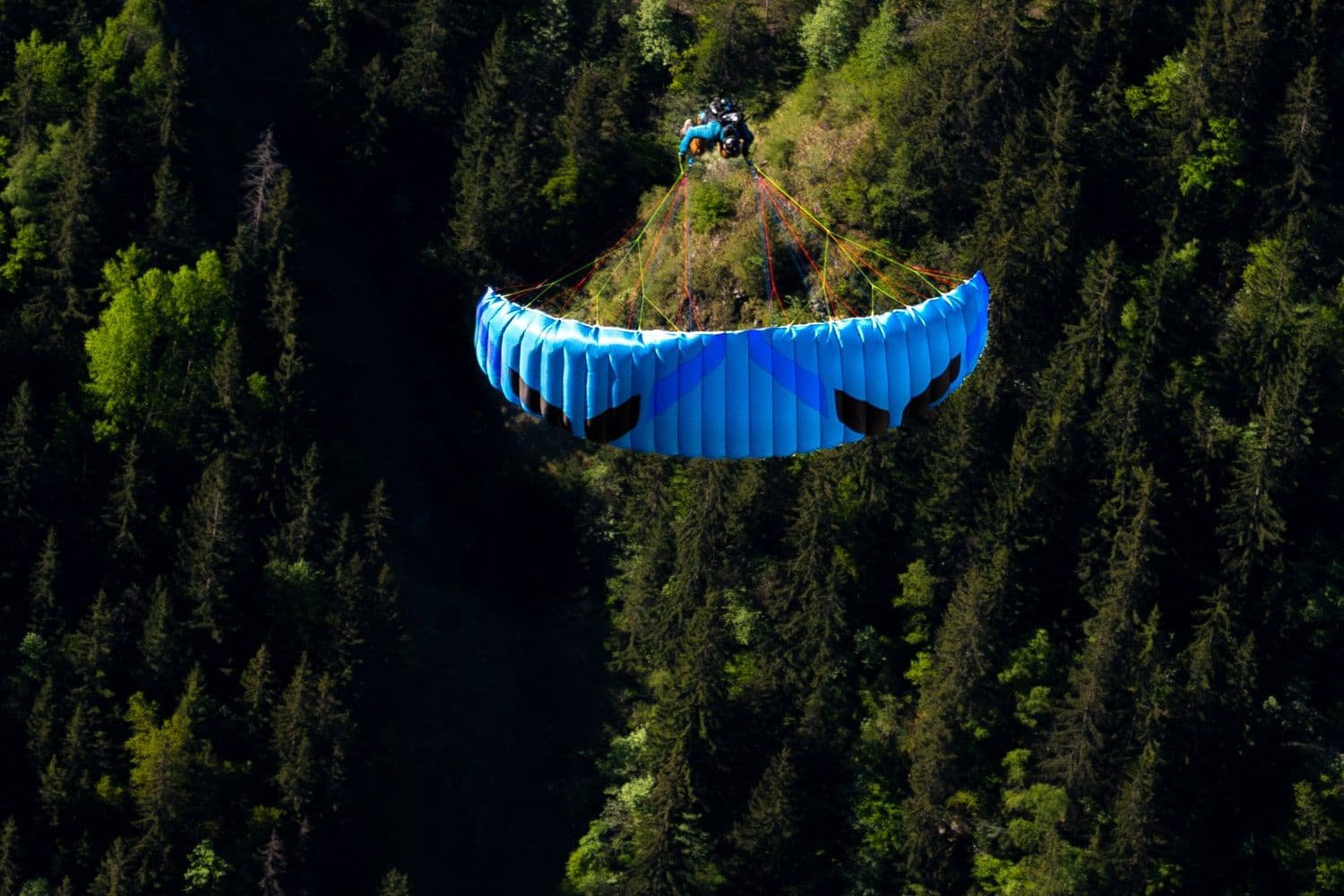

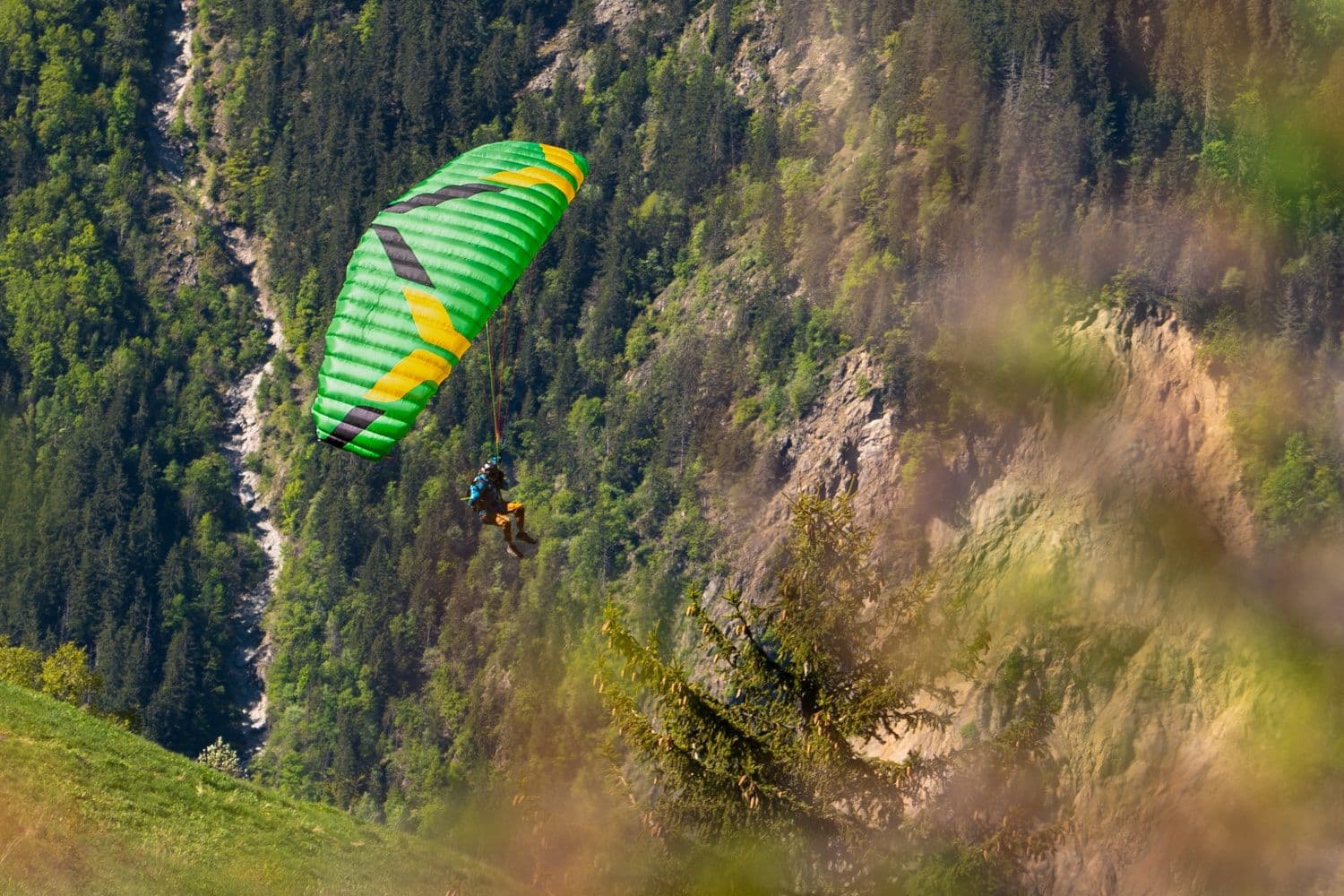

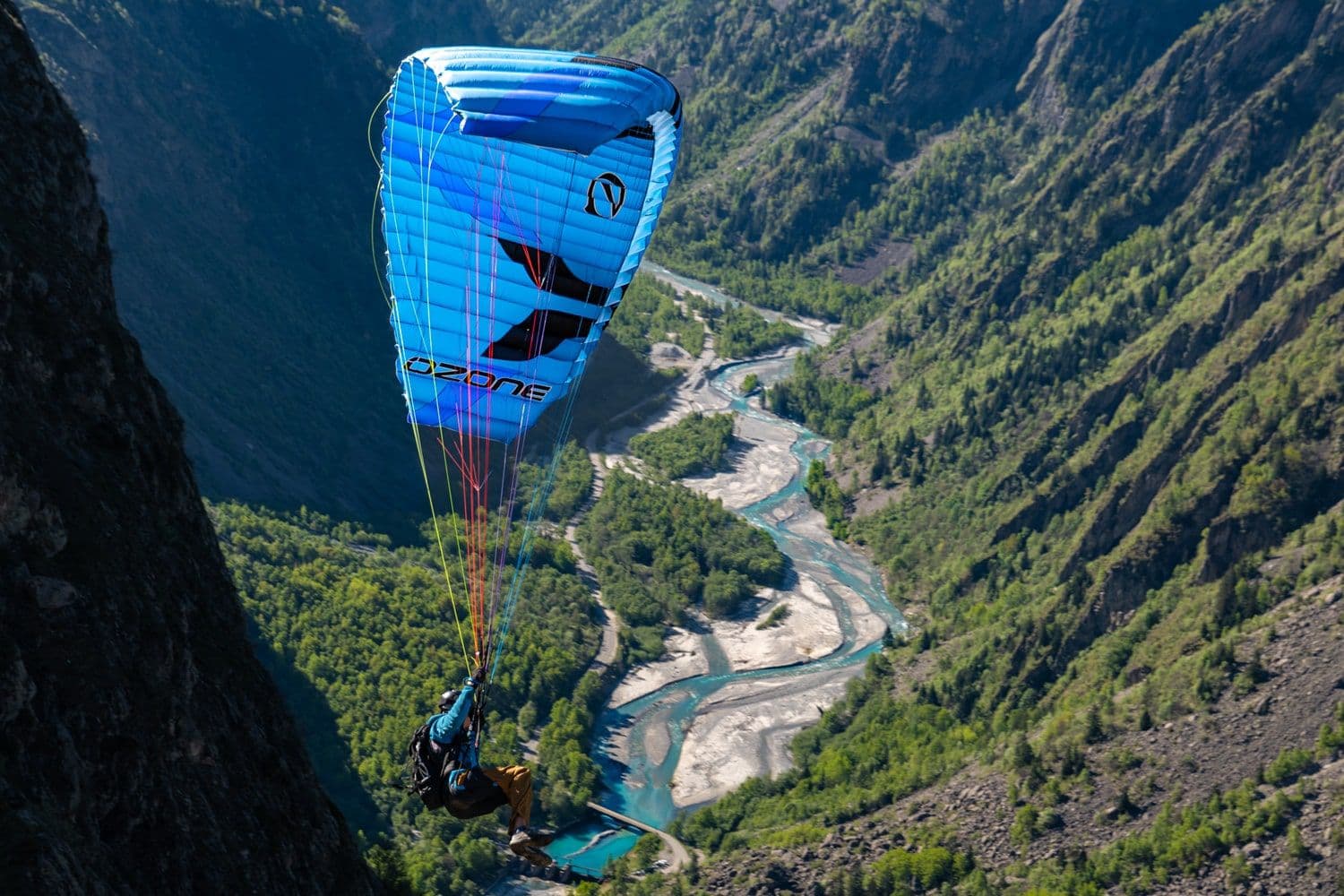

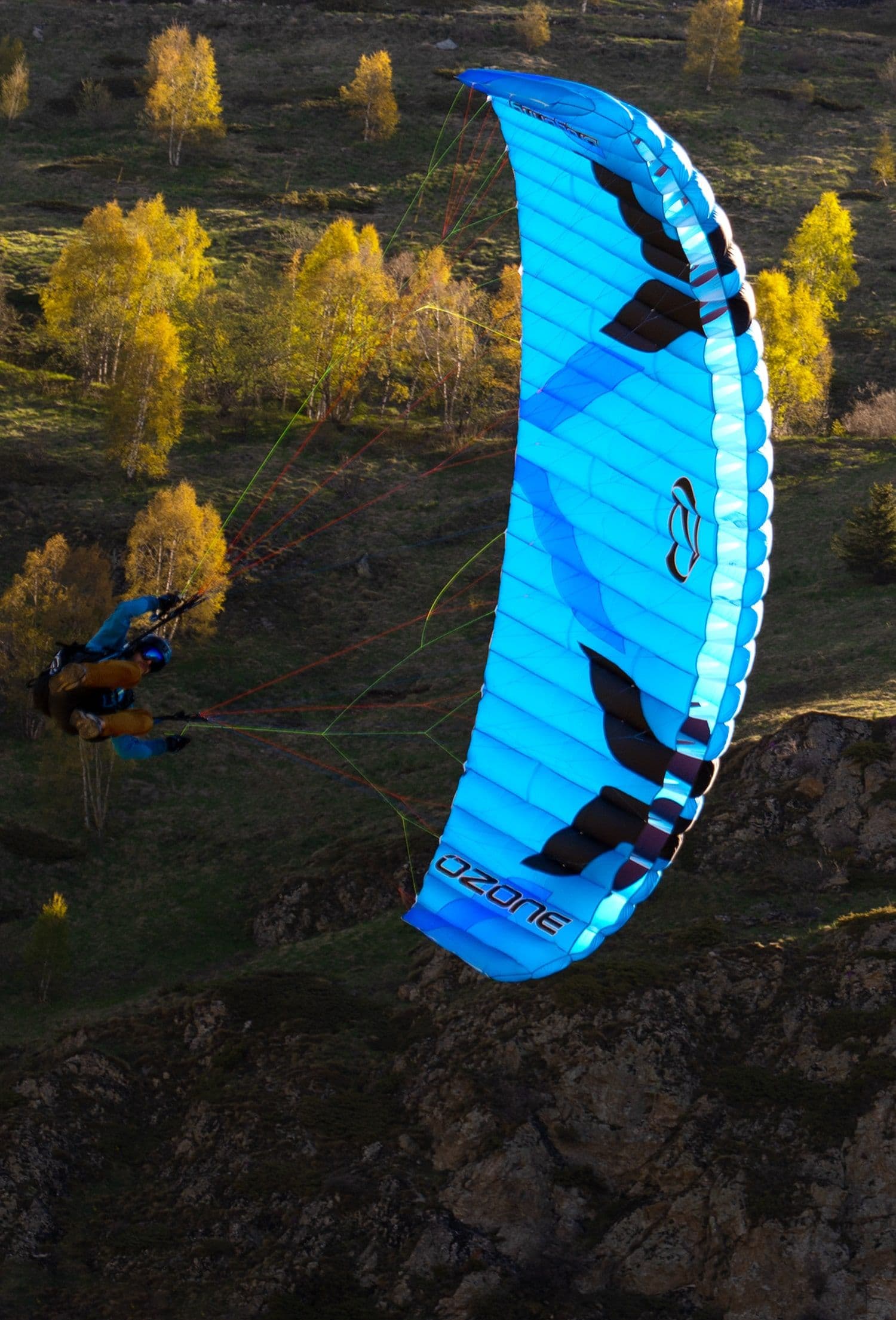

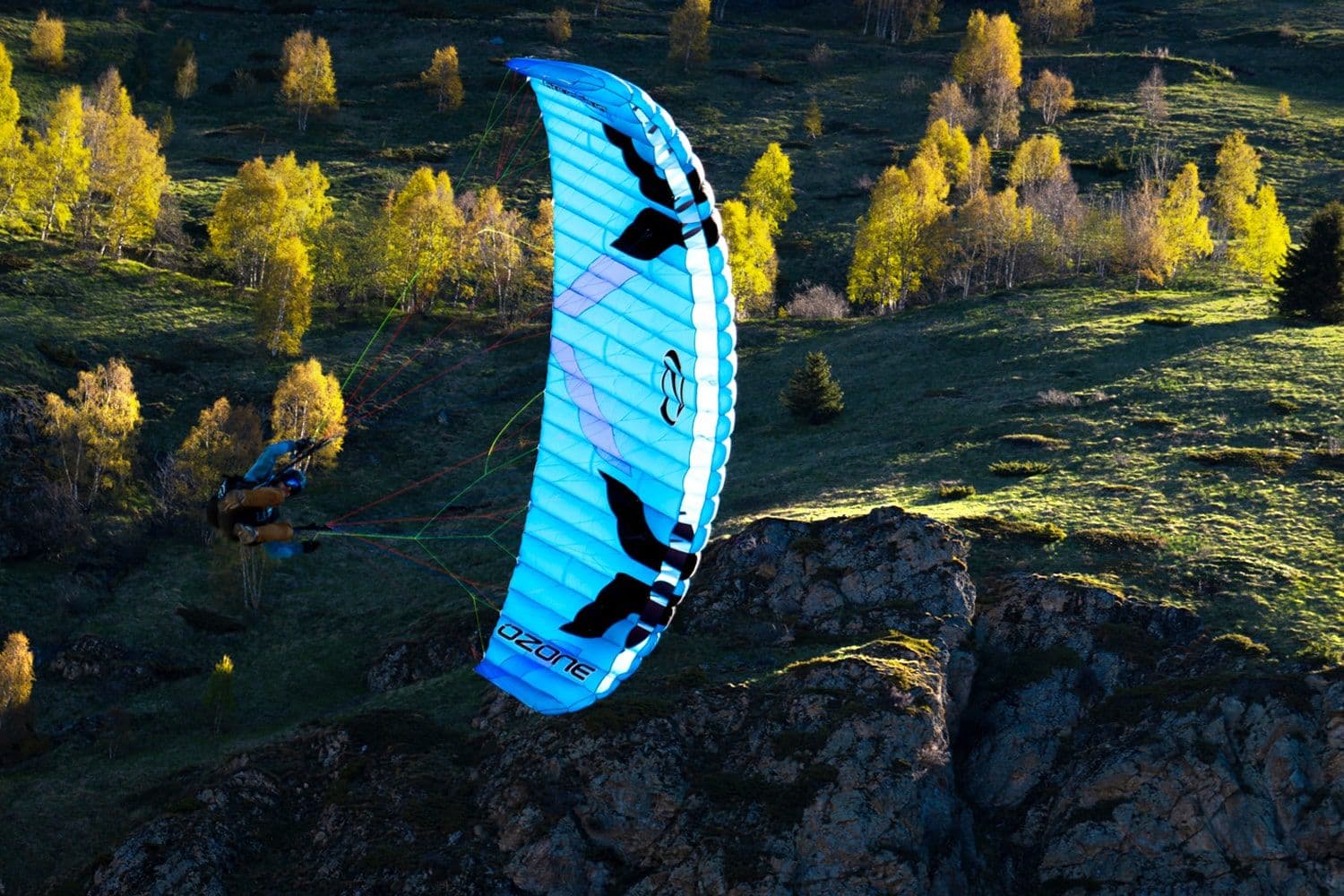

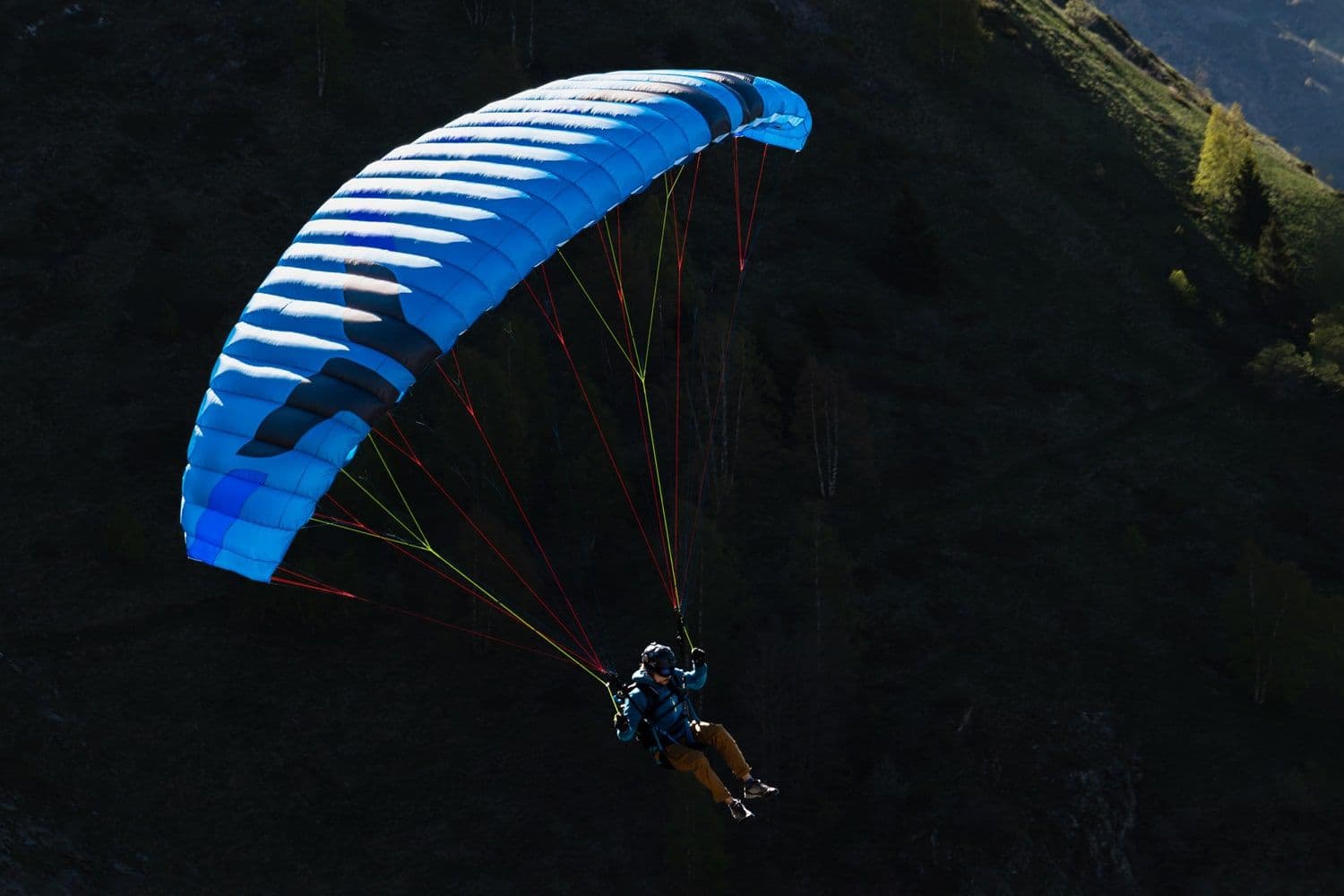

The DragonFly is a stable and versatile hybrid speed wing, designed for pilots of all skill levels. It is the perfect wing to launch your speed flying career, and is equally at home soaring a dynamic coastal cliff or carving a mountain descent.

Building on the legacy of the Firefly series, the DragonFly is founded on a simple principle: Maximum stability, with great efficiency for its class. A totally new profile has yielded improvements throughout.

The Launch

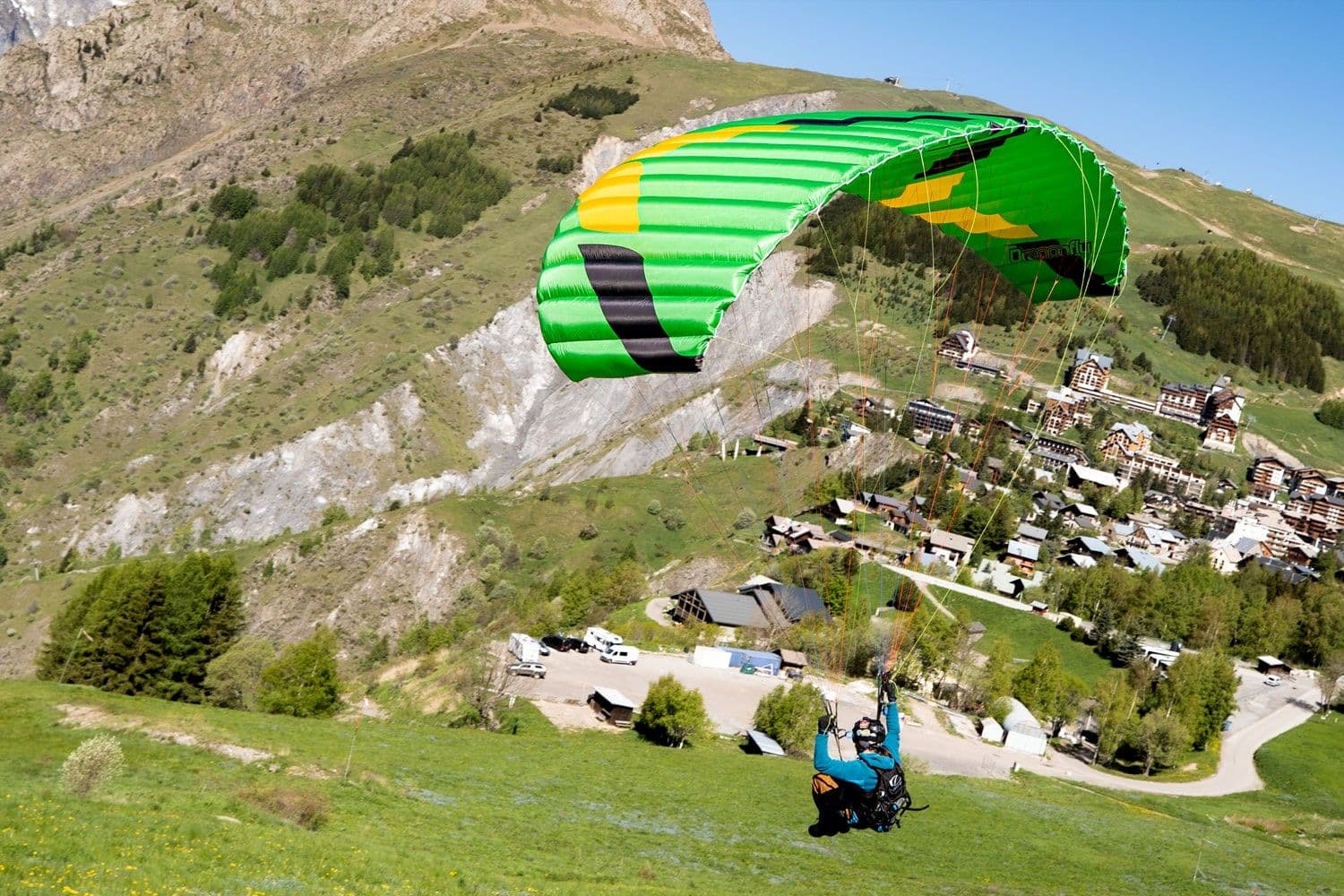

The DragonFly launch is light and immediate in no wind conditions, and forgiving in high wind. Thanks to re-positioned cell openings and the new profile, it is even better suited to speed flying instruction and beginner use.

Handling

More dynamic, yet roll stable and forgiving, it has a direct and predictable feel in the brakes. The roll rate feels responsive, but is never surprising. The DragonFly’s high level of passive safety is not only found in collapse resistance, but also in the fun yet forgiving handling.

Glide Performance & Trim Range

Thanks to an increased trim range, the DragonFly’s glide performance is greater than the FireFly, and it also has a higher top speed. It all adds up to the ability to fly in a wider range of conditions and sites! Reach more distant LZs, and fly in more wind, comfortably.

The Pilot

This is a wing for pilots of all skill levels who want a solid, stable, all around wing – the DragonFly is a reliable partner for your first speed flights and for larger pilots. Available in two sizes, 16m and 18m, the weight range goes up to 120 kg.

COLOUR OPTIONS

Dragonfly Colour Options

ORDERING INFORMATION

OZONE has some of the shortest lead times in the industry. The current production time is approximately 95 days from order to shipping (updated daily). Contact your dealer to place your order.

PACKAGE CONTENTS

OZONE offers a range of backpack choices when you order your wing. To change the type of backpack that will come with your wing, please speak with your OZONE Dealer.

Your OZONE wing is delivered standard with the following accessories:

Speed Wing XL bag, Inner Bag, Glider Strap, Speed Bar, OZONE Stickers, Repair Cloth, OZONE Keyring.

You may choose to add something to your order, such as: Saucisse Bag (video) (concertina packing bag), Easy Bag (quick stuff sack), or OZONE Clothing and Accessories.

SPECIFICATIONS

sizes1618
Number of cells2727
Projected area (m2)14.2316.31
Flat Area (m^2)15.9818.32
Projected Span (m)6.627.09
Flat Span (m)7.868.42
Projected Aspect Ratio3.093.1
Flat Aspect Ratio3.873.87
Root Chord (m)2.442.61
Glider Weight (kg)2.953.3
In-flight Weight Range (kg)50 - 12050 - 120
Load test (8g)132kg132kg

MATERIALS

  • Top Surface Cloth: Dominico 30D
  • Bottom Surface Cloth: Dominico N20D
  • Rib cloth: Dominico 30D MF (hard)
  • Upper lines: Liros DSL serie
  • Mid lines: Liros DSL serie
  • Lower lines: Edelrid 6843 serie

DOWNLOADS

CUSTOM COLOURS

ColorChooserZero2
Zone 1
Zone 2
Zone 3

OZONE COLOUR REFERENCE (//)

SHARE YOUR DESIGN

Your message has been sent!

Share via Email

Please fill in this form and then press the Send it! button. An email will be automatically sent from flyozone.com to your friend with a link in it for him to see your custom colour design. You can also add notes to the email.

Your Email Address

Your Friend's Address

Your Notes

Share with OZONE Dealer

Please fill in this form and then press the Send to dealer button. An email will be automatically sent from flyozone.com to your local dealer with the information needed to place your order. Your local dealer will send you a quote asap. You can add notes to the email as well.

Your Contact Info

Your Notes

Select Your Country

ABOUT CUSTOM COLOURS

Ozone encourages you to customize your own personal colour combination for your wing. Customization generally incurs a fee. Once you’ve decided you can share your design with your friends, or if you are ready to order, send it to your local Ozone dealer to verify the charge and place the final order.

Please note that because the glider will be built specifically for you in the Ozone factory, payment must be received before production can begin.

FABRIC COLOURS AND UV RESISTANCE

Please be aware that the colour you see on your screen may not accurately represent the actual fabric colour. Secondly, different cloths specifications with the same color name may vary slightly, please see here for an example. Given the wide varience in monitor calibration and the fabric appearance in different light and colour combinations, it is impossible to perfectly represent fabric colour on screen. If you have any doubts about the colours, look at photos of various wings on our website to see them in different light and colour combinations or contact your local dealer to see the fabric in person.

All of the fabric that we use undergoes extensive testing in prototype colour phase to ensure colourfastness, mechanical stability, porosity, and general longevity before we put it into production. Once our fabric is in production, every meter of it is rigorously inspected upon arrival in our factory, and fabric which does not pass our stringent quality control standards is returned to the manufacturer. We are frequently asked, "Which colours last the longest, or have the best UV resistance?" All of the colours that we stock score between 4 and 5 on a scale of 1-5, with 5 being the highest possible rating for longevity.
