TRIKE - DGAC/LOAD

TRIKE - DGAC/LOAD

  • All new Trike-specific design
  • Effortless & progressive launch
  • Fast & efficient cruise speed, with extended trim range
  • Load tested to 625 kg @5.25G, and 410 kg @8G
  • Winglets & reflex profile provide incredible stability
  • Double tip steering for excellent handling

PRODUCT INFO

MAKES TRIKE FLYING EASY!

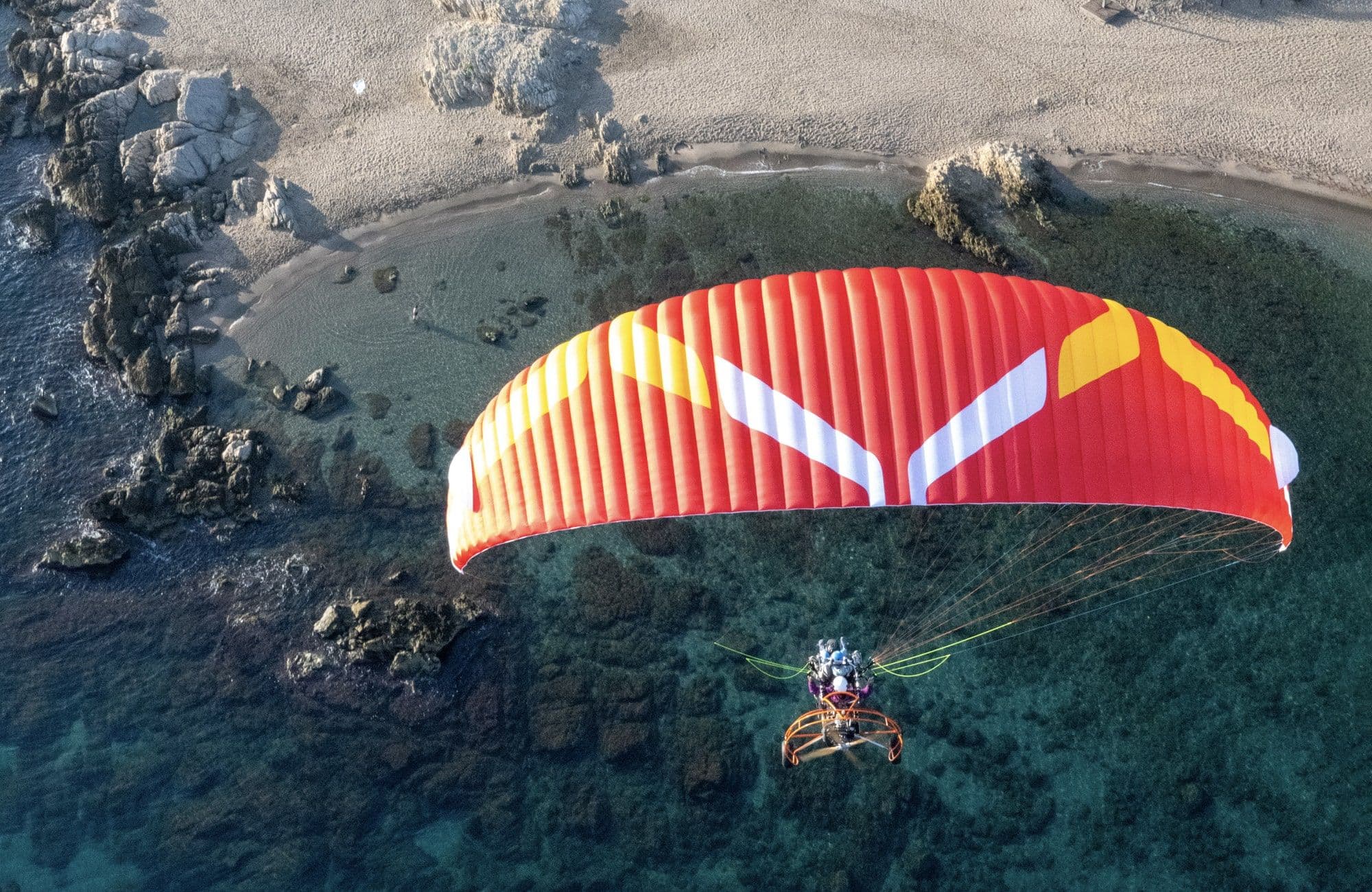

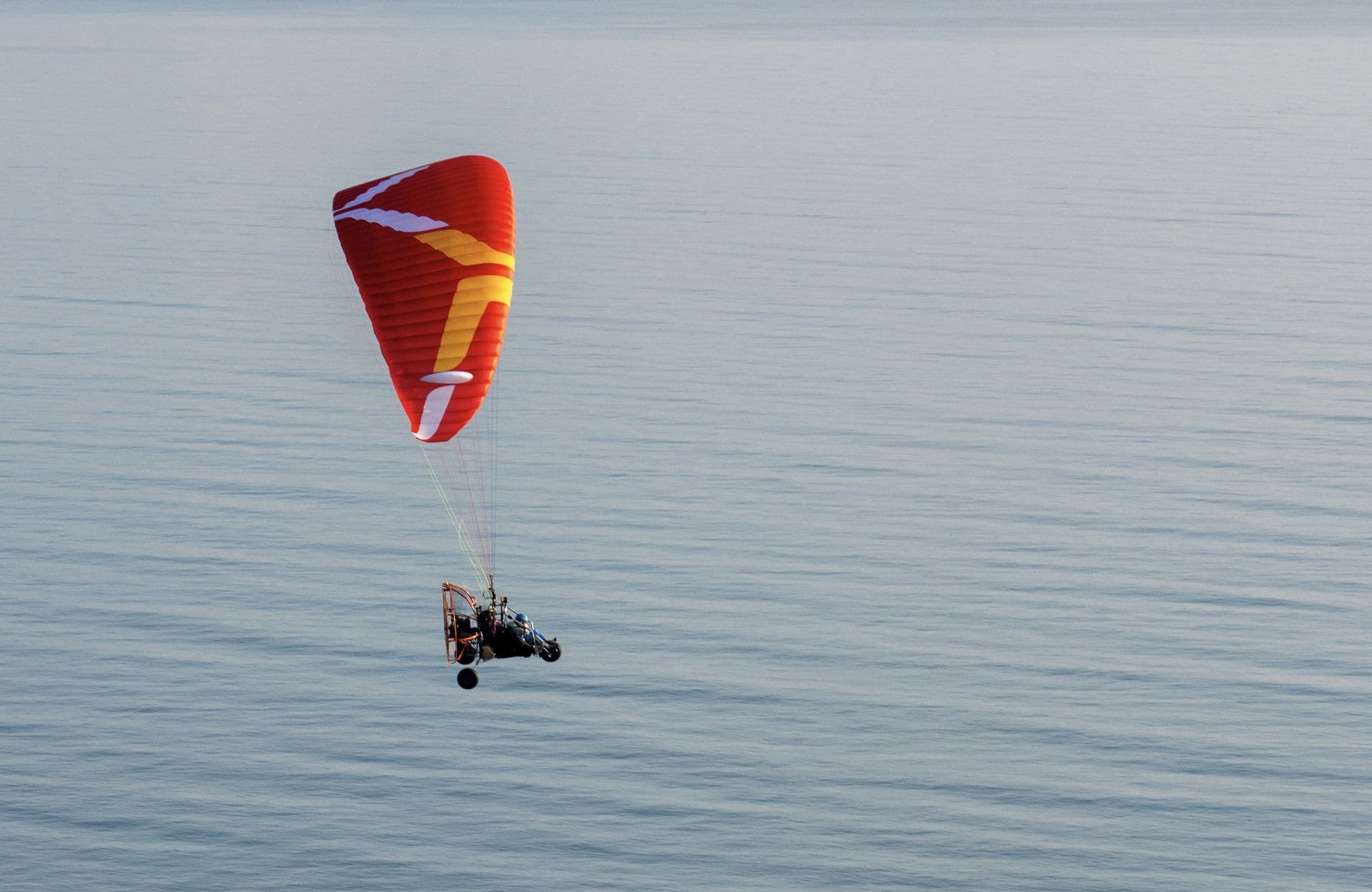

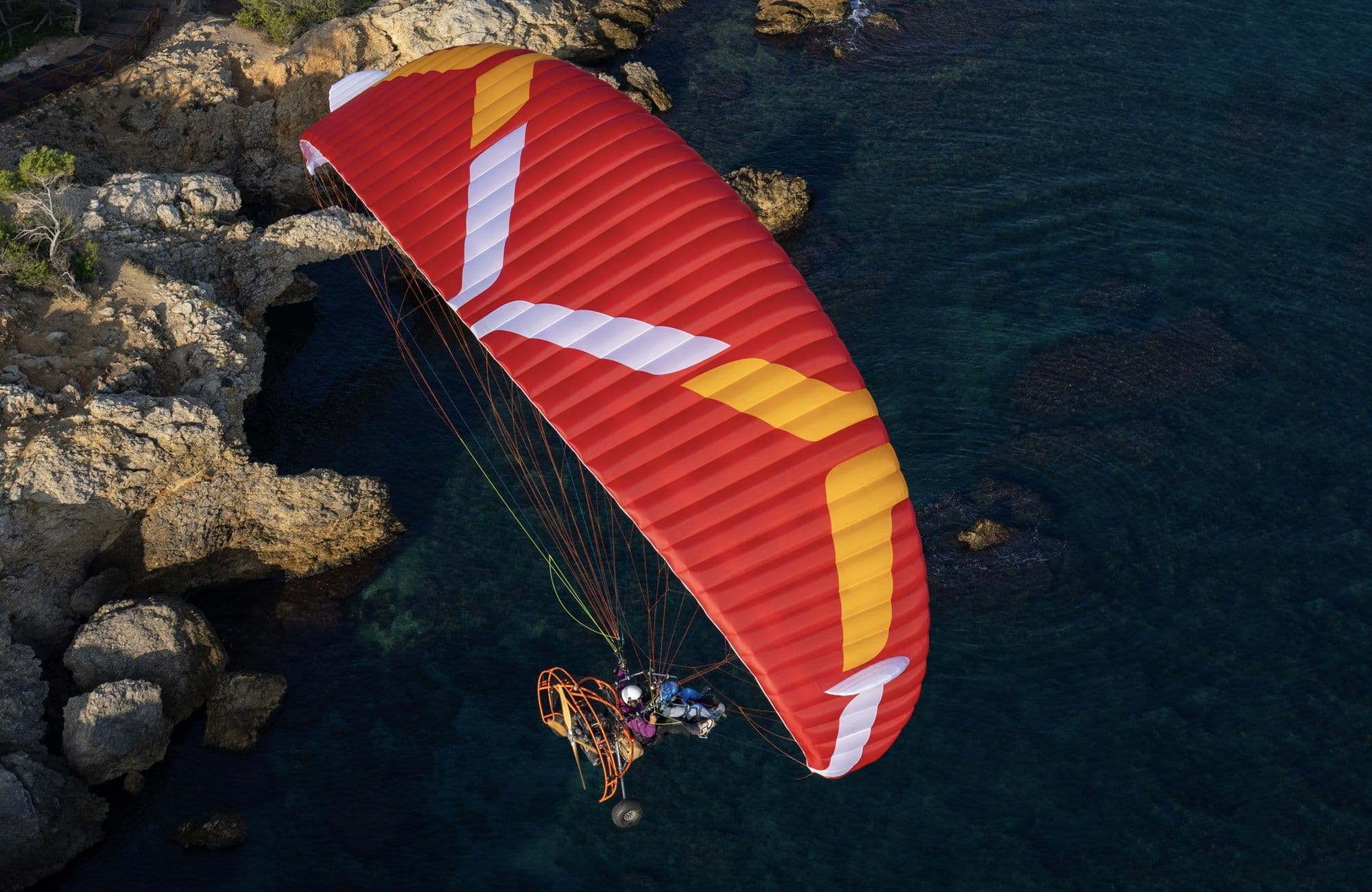

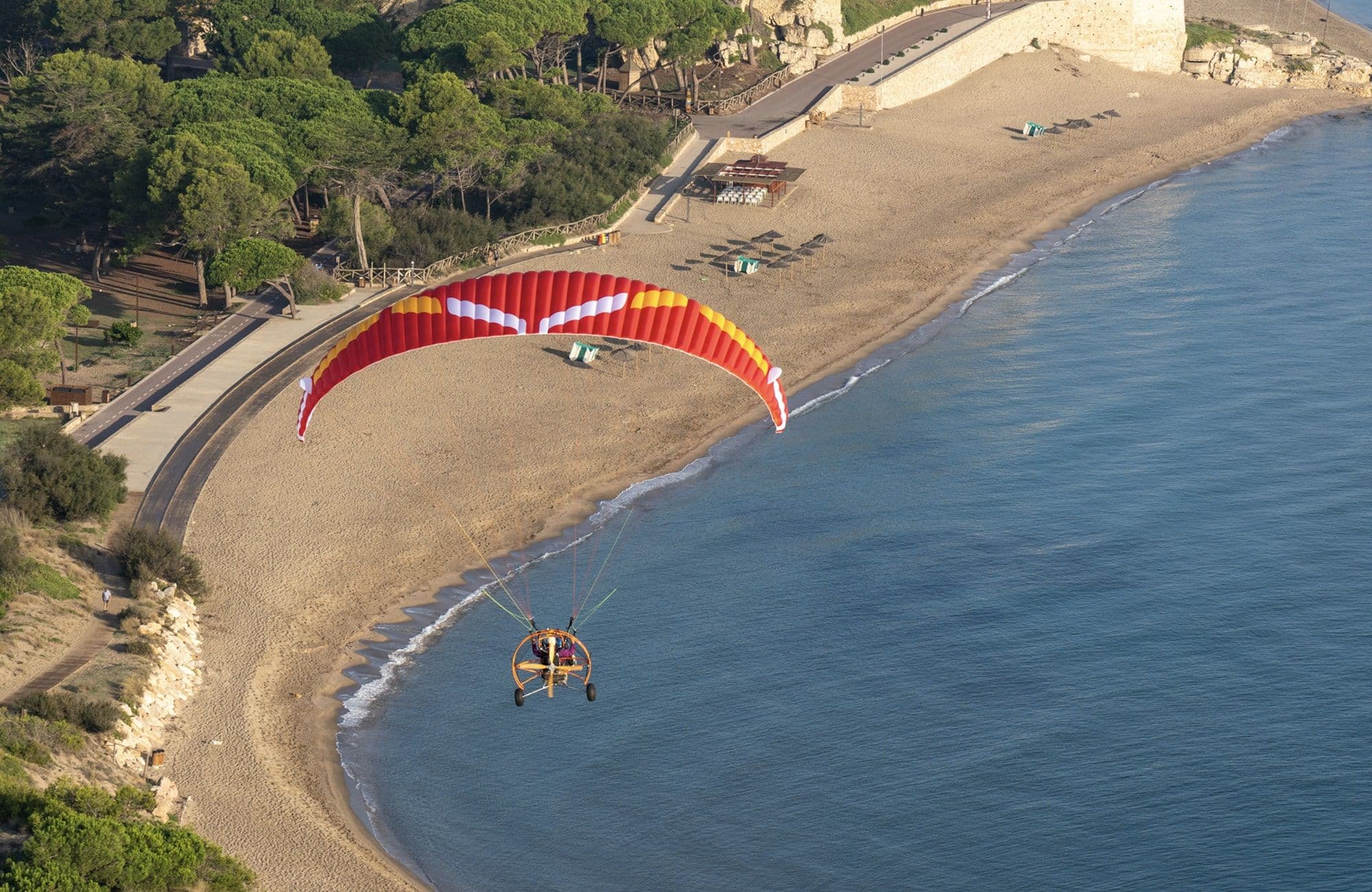

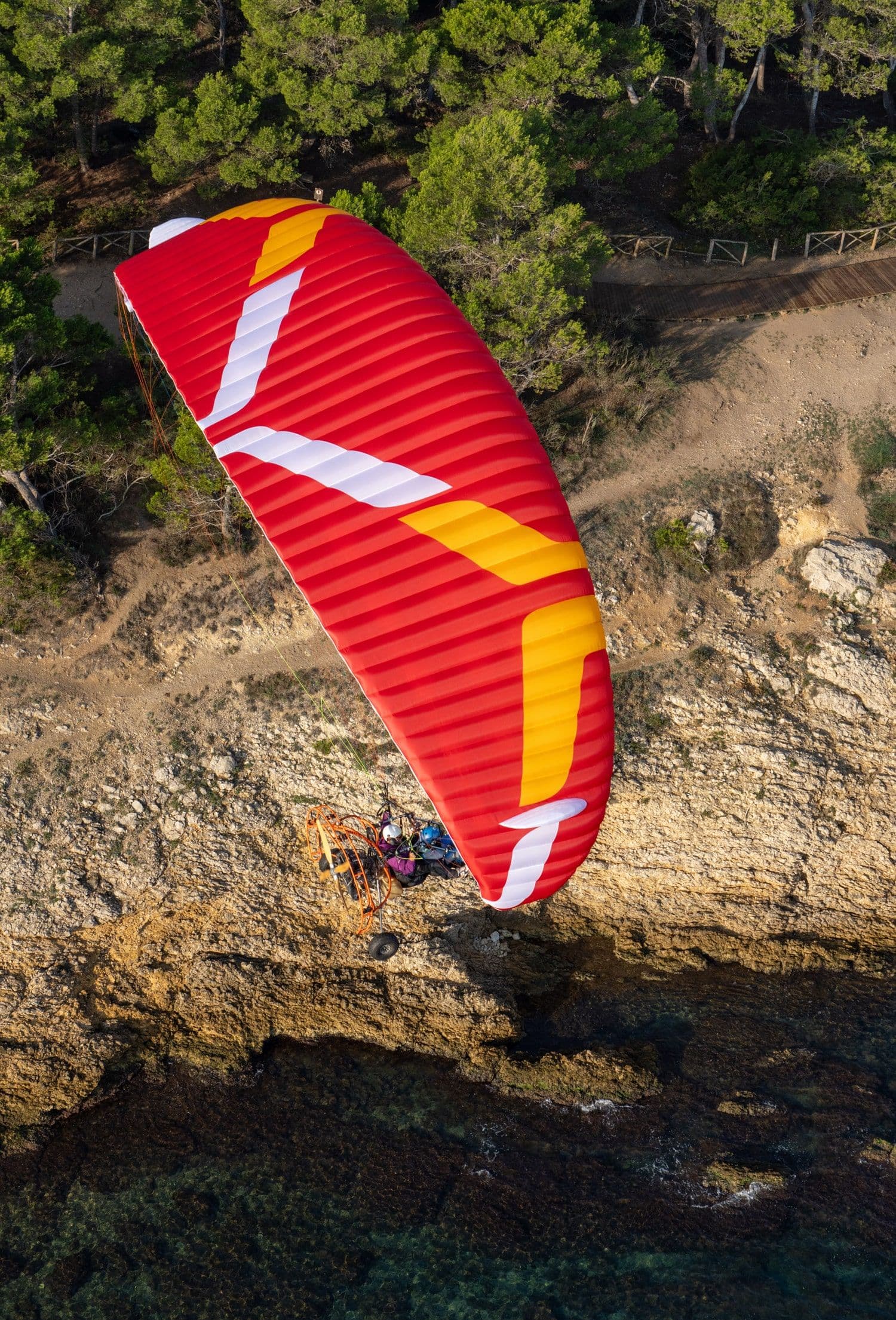

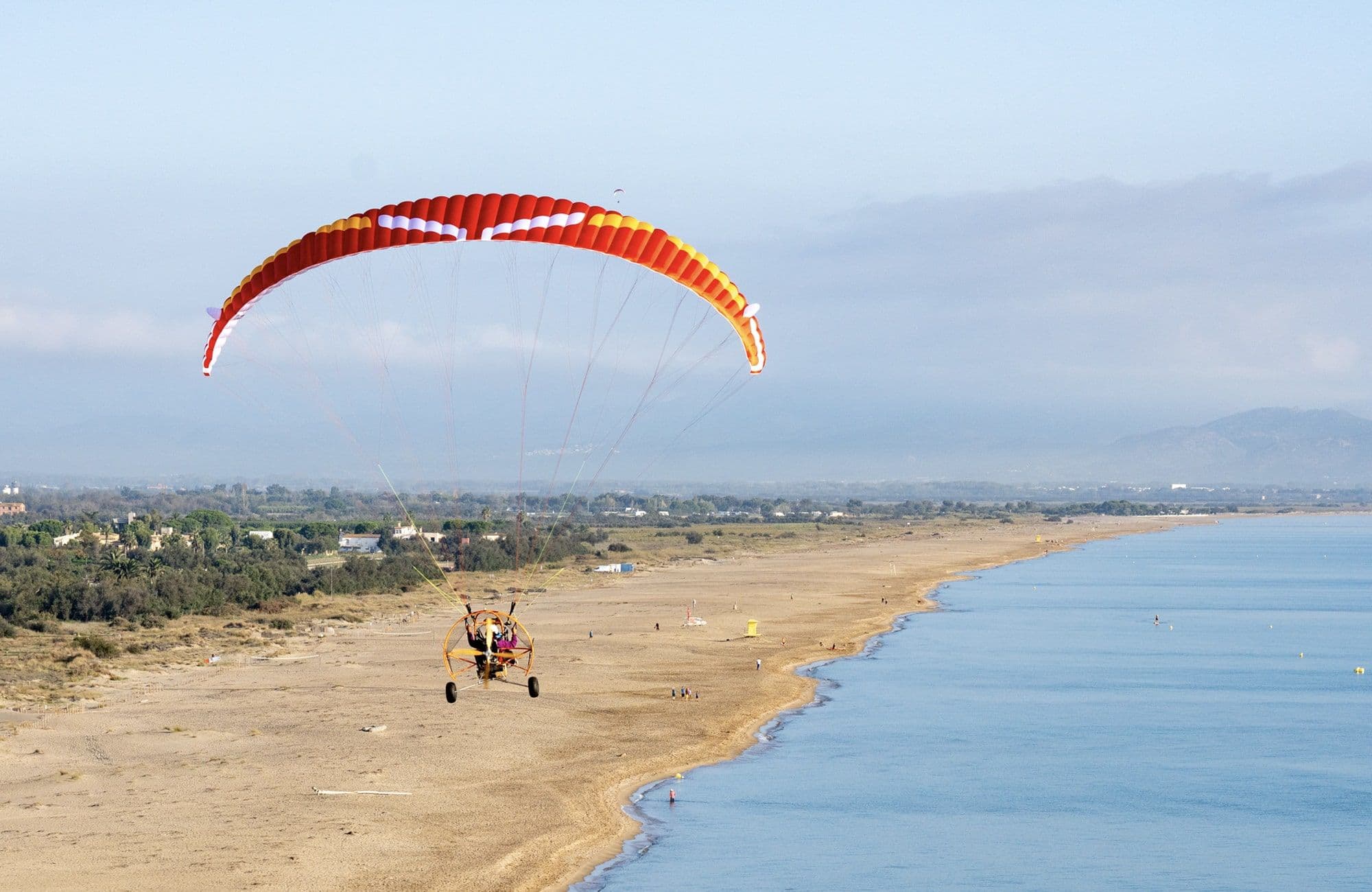

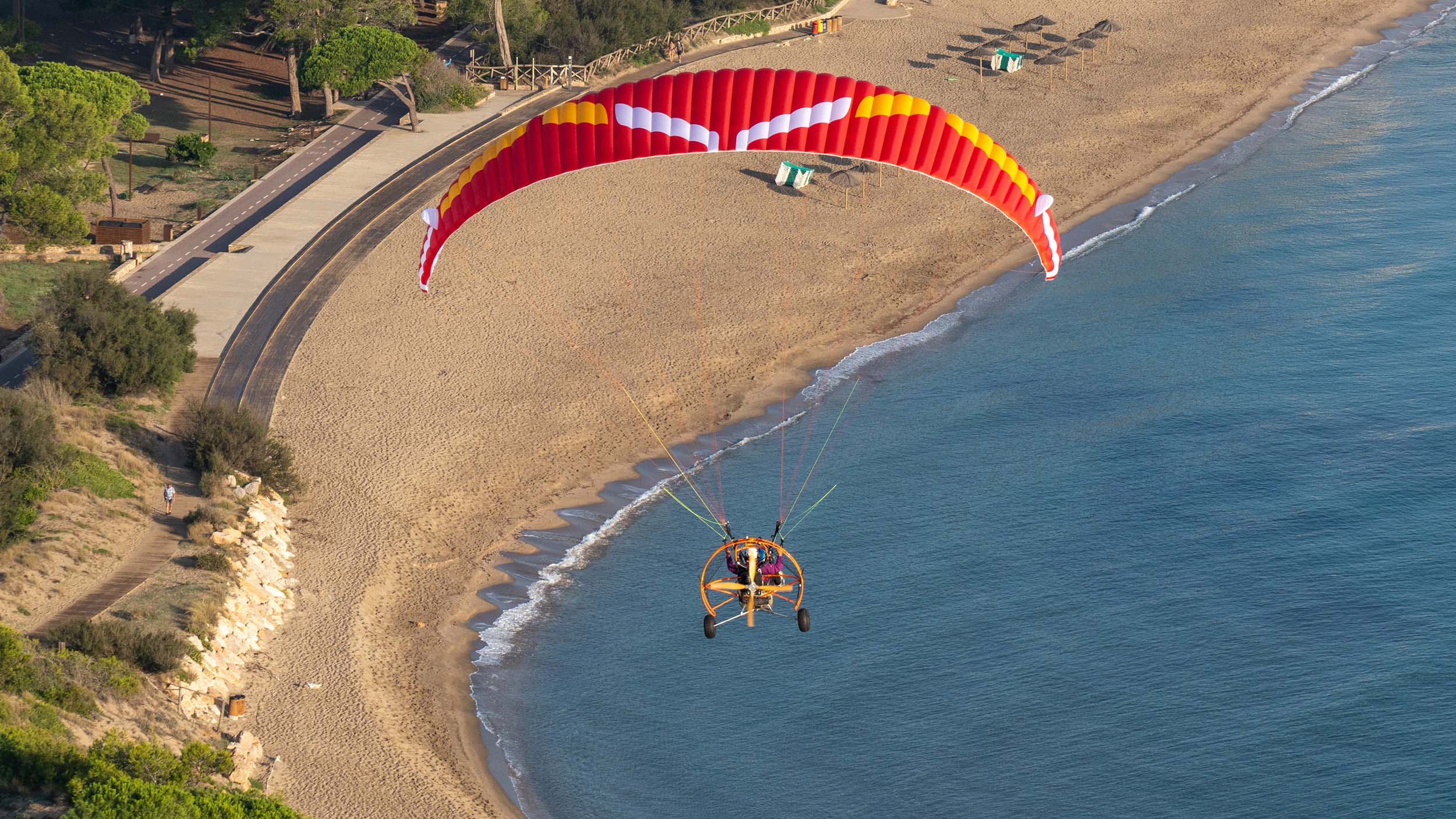

The Triox is the Ozone most purpose-built trike wing. It makes trike flying as easy as possible while delivering fast cruise speeds, high fuel-efficiency, and an effortless launch.

THE LAUNCH

The Triox inflates easily without overshooting, in all conditions. It is roll-stable and very easy to ground-handle. The Trike Launch Assist System means the inflation process is simple and effortless, leaving your hands free to control brakes and throttle.

IN FLIGHT

In the air, the Triox’s handling is progressive and direct. Turns are smooth and coordinated with no dive tendency. Winglets make it highly stable in the air even during a high-powered climb or hands-off cross country flights, leaving the pilot and passenger to sit back and enjoy the ride.

THE TECH

The high performance Shark Nose OZONE Reflex Profile (OZRP) is tuned specifically for powered flight, providing consistent lift and internal pressure through a wide range of angles of attack. The Triox is more stable in accelerated flight, and more stall & spin resistant at low speeds. The aspect ratio and low-drag line plan combined with the OZRP profile make this the most efficient trike wing available.

SPECIAL FEATURES

The TRIOX double tip steering system provides pilots with two options: A 2D system, for agility and precision, and the TST mini-toggles for high speed control. The location low on the risers make these controls easily accessible even with high hang points.
The A-Assist attach points, custom trike brake handles, and TST all feature strong magnetic retainers. Trimmer adjustments are easy thanks to the Triox’s high quality roller buckle.

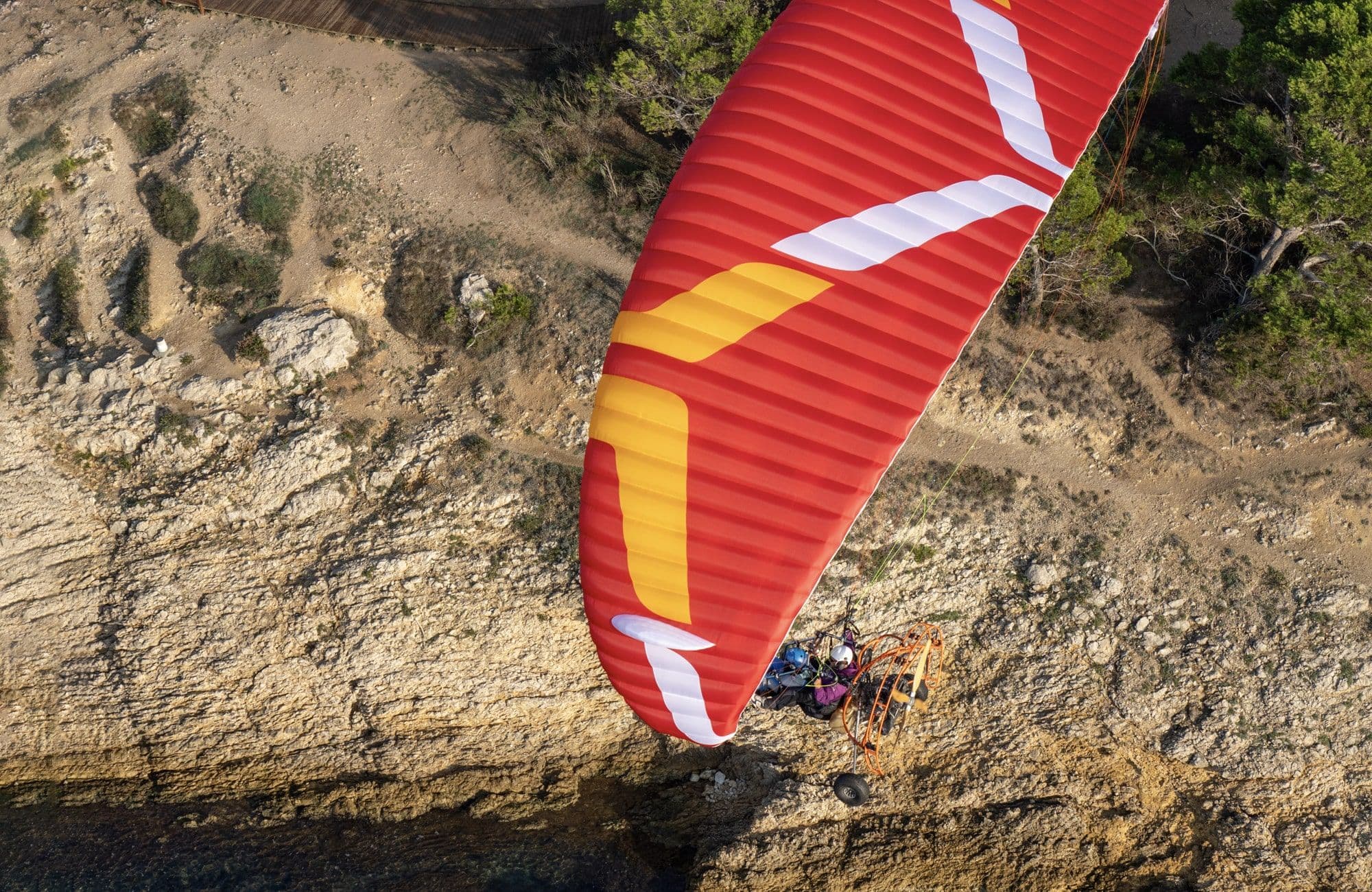

WINGLETS

Winglets provide significantly greater roll stability and improve spiral behaviour. Glider characteristics are often at odds and we are forced to make compromises in order to reach the best outcomes, but the use of winglets avoids compromise and provides the “best of both worlds” – they increase roll stability without negative outcomes. Regardless of trike type, geometry, thrust, or power, the Triox remains roll-stable!

VERSATILITY

Certified DGAC and load tested to 410 kgs @8G (EN standard) and 625kg @5.25G (DGAC standard), the Triox is available in three sizes, accommodating a wide range of power units and wing loadings. It is suitable for both solo and tandem trike flying, and thanks to the easy launch and flight characteristics is acceptable for a wide range of pilots from recreational to pro. This intuitive and dependable trike wing will last you for many seasons, and we’re excited to hear what you think!

COLOUR OPTIONS

Triox 2 Colour Options

ORDERING INFORMATION

The current production time is approximately 107 days from order to shipping (updated daily). Contact your dealer to place your order.

PACKAGE CONTENTS

Your OZONE wing is delivered standard with the following accessories:

You may choose to add something to your order, such as: Easy Bag (stuff bag), Saucisse Bag (video) (concertina packing bag), Glider Backpack, or OZONE Clothing and Accessories.

SPECIFICATIONS

sizes353841
Number of cells484848
Projected area (m2) 30.232.835.3
Flat Area (m^2)34.93840.9
Projected Span (m)10.5410.9811.4
Flat Span (m)13.3713.9314.5
Projected Aspect Ratio3.73.73.7
Flat Aspect Ratio5.15.15.1
Root Chord (m)3.373.513.7
Glider Weight (kg)8.38.499.22
PPG Weight Range (kg) 130-350150-380170-410
Load test at 8G410410410
Load test at 5.25G (kg)625625625
*DGAC Approved DGACDGACDGAC
*pending
* Weights may vary up to 50gm per size due to slight variations in the manufacturing of the fabric used.

MATERIALS

  • Top Surface Cloth: Dominico 30D
  • Bottom Surface Cloth: Porcher 9018 E65
  • Rib cloth: Porcher 9017 E29 (hard)
  • Upper lines: Edelrid 8000U serie
  • Mid lines: Edelrid 8000U serie
  • Lower Lines: Edelrid 8000U serie
