The Kona 2 is the PPG version of the Buzz Z6, sharing the same technology, cutting edge performance, comfort and ease of use. It is the perfect cross over wing that excels whether flown under power or in free-flight.
Aerodynamically, the Kona 2’s profile and sail are very clean, benefiting from many of the performance enhancing design features that have driven our latest generation of performance wings. The Kona 2’s aspect ratio remains the same as the Kona – increasing aspect ratio is a simple method of increasing performance, but can lead to significant compromises in passive safety. This is not something we are willing to do, instead we focus on other areas, notably reducing drag. Although not a full on reflex profile, the Kona 2 features the well proven, solid Shark Nose profile that is very collapse resistant and forgiving in the brake range. The Kona 2 also features double 3D shaping for a cleaner leading edge; a new internal structure for comfort and structural strength along with an optimised line layout to reduce parasitic drag. The Kona 2 is a very modern performance wing offering class leading performance, solidity and high levels of safety.
COMFORT AND PROGRESSION
Above all else, the Kona 2 is easy and comfortable to fly. The handling is intuitive, fun, and agile, with a progressive and precise feel though the brakes. It is highly compact, with perfectly coordinated roll and yaw in the climb. In active air, the feedback from the wing is gentle and predictable; filtering air movements in an understandable way.

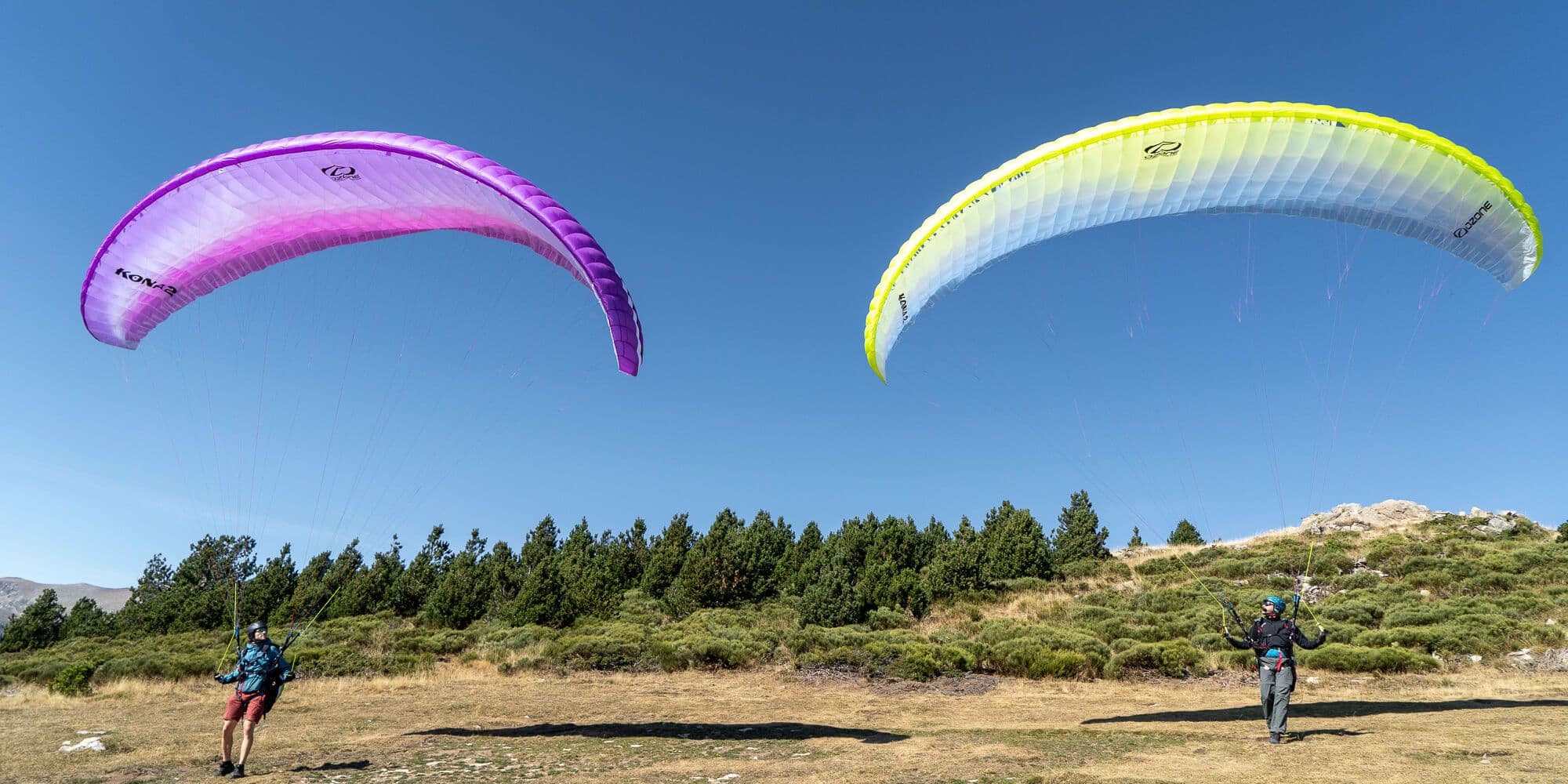

Launching is a critical part of each and every flight, and we have paid particular attention to the ground-handling characteristics of the Kona 2. It inflates smoothly, without overshooting in higher winds and in zero wind conditions there is no tendency to hang back.
All of these factors provide you with the confidence to progress and have fun, whether flying under power or in free-flight mode.
The Kona 2 is suitable for a wide range of pilots from talented beginners to the most experienced, it is ideal for those who fly between around 30-50 hours per year and enjoy free flying as much as powered flight. Owning dedicated wings for both disciplines is expensive, the Kona 2 offers the perfect balance in one package.
The Kona PPG risers feature a smooth trim system for comfortable high speed cruising when flying under power and a foot operated accelerator system to reach top speeds and when free flying. The risers also feature tip steering system and adjustable brake pulleys so the height can be set to make it compatible with any type of power unit.
*This wing has passed the criteria required by the DGAC and has been load tested to the EN 926-1 standard. In addition to our own extensive testing, it has also been independently flight tested to the EN 926-2 standard with the trimmers set to the slow position. Releasing the trimmers, or flying outside of the EN certified weight range invalidates any EN flight certification. As delivered, the wing does not conform to the EN 926-2 standard due to the inclusion of the trimmer systems on the risers.
OZONE has some of the shortest lead times in the industry. The current production time is approximately 101 days from order to shipping (updated daily). Contact your dealer to place your order.
OZONE offers a range of backpack choices when you order your wing. To change the type of backpack that will come with your wing, please speak with your OZONE Dealer.
Your OZONE wing is delivered standard with the following accessories:
Easy Bag (or Light Easy Bag), Risers Bag. Inner Bag, Glider Strap, Speed Bar, OZONE Stickers, Repair Cloth, OZONE Keyring.
You may choose to add something to your order, such as: Saucisse Bag (video) (concertina packing bag), Glider Backpack, or OZONE Clothing and Accessories.
|Number of cells||48||48||48||48||48||48|
|Projected area (m2)||18.7||20.3||21.8||23||24.5||26.5|
|Flat Area (m^2)||22.2||24.1||25.8||27.3||29||31.3|
|Projected Span (m)||8.23||8.57||8.87||9.12||9.4||9.78|
|Flat Span (m)||10.69||11.14||11.52||11.85||12.22||12.71|
|Projected Aspect Ratio||3.62||3.62||3.62||3.62||3.62||3.62|
|Flat Aspect Ratio||5.16||5.16||5.16||5.16||5.16||5.16|
|Root Chord (m)||2.63||2.74||2.84||2.92||3.01||3.13|
|Glider Weight (kg)||4.31||4.63||4.84||5.05||5.4||5.68|
|PG (EN) (kg)||55-70||65-85||75-95||85-105||95-115||110-130|
|PPG (DGAC) (kg)||60-100||70-115||80-130||90-145||100-160||115-180|
|Load test 8G up to||147 kg||147 kg||147 kg||147 kg||152 kg||152 kg|
|Load test 5.25G up to||223 kg||223 kg||223 kg||223 kg||231 kg||231 kg|
- Top Surface Cloth: Dominico 30D
- Bottom Surface Cloth: Porcher Easy fly
- Rib cloth: Porcher 9017 E29 (hard)
- Upper lines: Edelrid 8000U serie
- Mid lines: Edelrid 8000U serie
- Lower Lines: Edelrid 6843
OZONE COLOUR REFERENCE (///)
SHARE YOUR DESIGN
ABOUT CUSTOM COLOURS
Ozone encourages you to customize your own personal colour combination for your wing. Customization generally incurs a fee. Once you’ve decided you can share your design with your friends, or if you are ready to order, send it to your local Ozone dealer to verify the charge and place the final order.
Please note that because the glider will be built specifically for you in the Ozone factory, payment must be received before production can begin.
FABRIC COLOURS AND UV RESISTANCE
Please be aware that the colour you see on your screen may not accurately represent the actual fabric colour. Secondly, different cloths specifications with the same color name may vary slightly, please see here for an example. Given the wide varience in monitor calibration and the fabric appearance in different light and colour combinations, it is impossible to perfectly represent fabric colour on screen. If you have any doubts about the colours, look at photos of various wings on our website to see them in different light and colour combinations or contact your local dealer to see the fabric in person.
All of the fabric that we use undergoes extensive testing in prototype colour phase to ensure colourfastness, mechanical stability, porosity, and general longevity before we put it into production. Once our fabric is in production, every meter of it is rigorously inspected upon arrival in our factory, and fabric which does not pass our stringent quality control standards is returned to the manufacturer. We are frequently asked, "Which colours last the longest, or have the best UV resistance?" All of the colours that we stock score between 4 and 5 on a scale of 1-5, with 5 being the highest possible rating for longevity.
