LM6

LIGHT PERFORMANCE / COMPETITION - EN D

  • Lightweight High Performance
  • Light version of M6

PRODUCT INFO

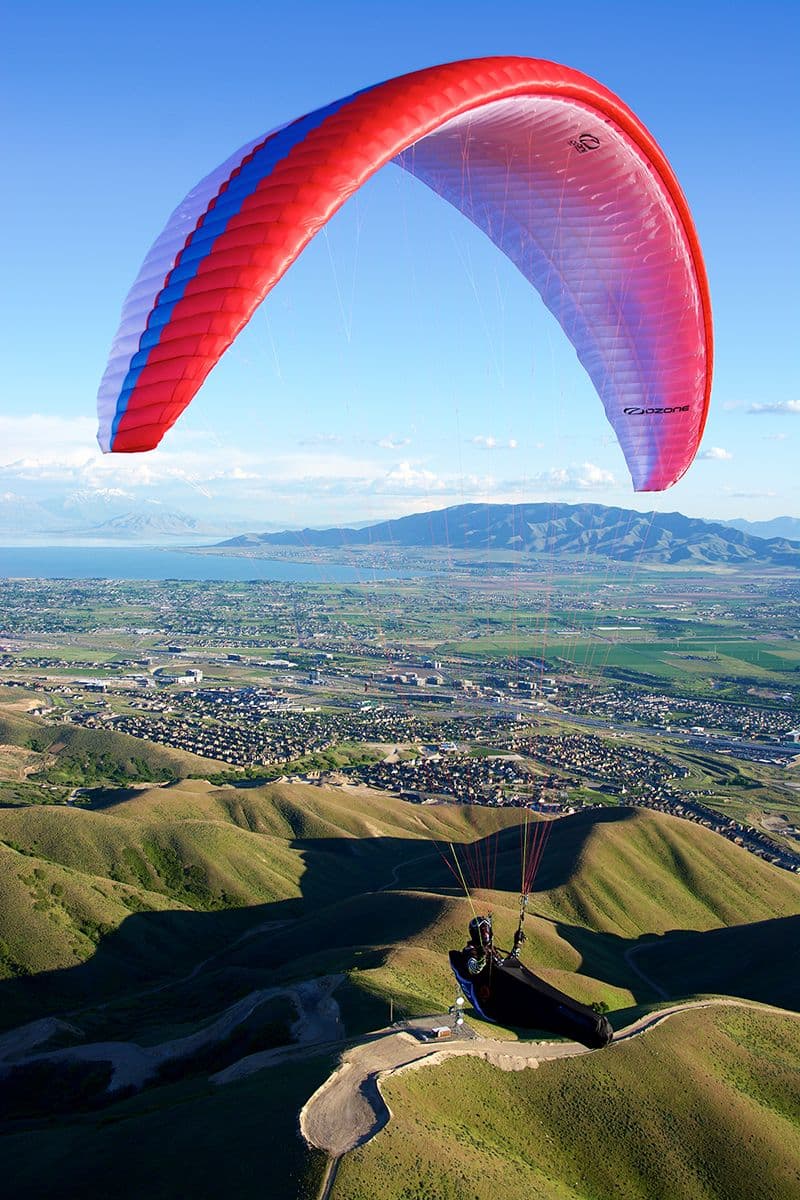

LM6: LIGHTWEIGHT HIGH PERFORMANCE

The LM6 is the light version of the Mantra M6. We applied the proven lightweight construction techniques that have made OZONE a leader of light equipment for more than a decade to one of the most successful Performance-Competition wings in our range. The result, we think, speaks for itself. The Mantra M6 has gained a stellar reputation as a comfortable yet cutting edge wing that is a leader in the class and it has now been transformed into a lightweight vol-biv machine.

After 10 years of designing wings for pilots in the X-Alps race, our commitment to lightweight equipment development remains strong. The process of transforming the M6 into the LM6 involves an intensive optimisation process which saves micrograms at over one thousand control points in the wing’s design. The overall weight has been reduced to a minimum without compromising the strength and safety of the wing. The LM6 has full EN D flight and load test certification.

The LM6, like the M6, is by far the most advanced 3-line wing that we have ever produced. Designed for experienced XC/competition pilots who enjoy the comfort, safety and performance of ‘classic’ EN D, the LM6 will feel familiar and reassuring to pilots with experience in this class of wing.

Over the course of our testing and development, we have taken the 3-line concept to its absolute maximum, incorporating the best design elements of the LM5 whilst increasing the number of cells, modifying the planform and optimising the line plan. The LM6 has the extra performance that was not possible with the LM5, due to the serious weight restrictions demanded by the X-Alps.

LM6 TECH:

Fully optimised for comfortable performance flying and featuring OZONE SharkNose technology, the LM6 contains all of the features that have made the modern OZONE range renowned for stability and comfort. With an aspect ratio of 6.92, an efficient pitch stable profile, a 23% total line drag reduction and a highly refined internal tension, the LM6 offers improved performance relative to the LM5.

Comfortable and intelligible feedback is provided by the LM6’s 3-line system which allows for effective pitch control through the C risers. This tight, compact and controllable sail behaviour further improves glide performance in turbulent conditions, the wing steps up through wind shear converting energy into height like a competition wing. Through the brakes the wing is extremely precise and responsive to inputs producing an incredibly compact feel which makes it easy to turn tightly and efficiently, even in the smallest most turbulent cores. This coordinated feel, combined with the high aspect ratio translates to superb climbing characteristics and high levels of efficiency.

The LM6 is suitable for experienced and competent XC pilots who spend more than 100 hours per year in thermal conditions, and seek a wing that will carry them deep into vol-biv territory. The LM6 is a popular choice for vol-biv adventurers and competitors in races such as the X-Pyrenees. We are confident that the comfort and solidity of this wing will make it a favorite amongst experienced Performance-XC class pilots, as well as Sport-class pilots who are looking to move up to a wing which forms an excellent transition to the competition class. It is a high performance paraglider that needs to be flown with the full attention and respect that any such wing deserves. An LM6 pilot must have a solid understanding of best practices for recovery from incidents in flight.

We’ve designed the LM6 specifically for vol-biv adventures that require the highest level of performance. We look forward to your feedback on this exciting new wing, and most of all we want to hear about your adventures with it, so please send us news of your flights. Cheers, from all the Team.

COLOUR OPTIONS

LM6 Colour Options

PACKAGE CONTENTS

OZONE offers a range of backpack choices when you order your wing. To change the type of backpack that will come with your wing, please speak with your OZONE Dealer.

Your OZONE wing is delivered standard with the following accessories:

130 L lightweight backpack, Inner Bag, Glider Strap, Speed Bar, OZONE Stickers, Repair Cloth and OZONE Keyring.

You may choose to add something to your order, such as: Saucisse Bag (video) (concertina packing bag), Easy Bag (quick stuff sack), or OZONE Clothing and Accessories.

SPECIFICATIONS

sizesSmsmll
Number of cells66666666
Projected area (m2)n18.619.620.822
Flat Area (m^2)2223.324.626
Projected Span (m)9.79.9710.2510.55
Flat Span (m)12.3512.6913.0413.43
Projected Aspect Ratio5555
Flat Aspect Ratio6.96.96.96.9
Root Chord (m)2.252.322.382.45
Glider Weight* (kg)3.894.064.224.4
In-flight Weight Range (kg)65-8580-9590-105100-120
EN / LTFDDDD

MATERIALS

  • Top Surface - N20D / 27 Classic
  • Bottom Surface - Skytex 27 Classic
  • Rib cloth - Skytex 27 Hard / Skytex 32 Hard
  • Upper lines - Edelrid 8000U serie
  • Lower lines - Edelrid 8000U serie
